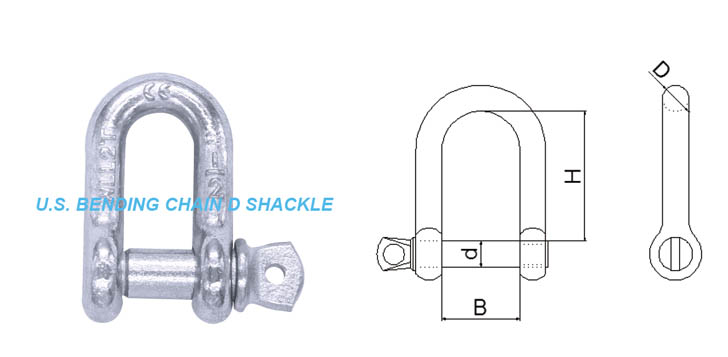

U.S. BENDING CHAIN D SHACKLE

Release: 2016-05-06 21:39:51  Views: 0

Model：4005

MODEL	SIZE(IN)	WL(T)	WT(LBS)	D(MM)	d(IN)	B(MM)	H(MM)
4005-1001	3/16	0.3	0.04	5	1/4	10	19
4005-1002	1/4	0.5	0.11	6	5/16	12	22
4005-1003	5/16	0.75	0.17	8	3/8	13	26
4005-1004	3/8	1	0.24	10	7/16	17	32
4005-1005	7/16	1.5	0.4	11	1/2	18	36
4005-1006	1/2	2	0.59	13	5/8	20	41
4005-1007	5/8	3.25	1.21	16	3/4	27	50
4005-1008	3/4	4.75	2.25	20	7/8	31	60
4005-1009	7/8	6.5	3.15	22	1	36	71
4005-1010	1	8.5	4.76	25	1 1/8	43	81
4005-1011	1 1/8	9.5	6.75	28	1 1/4	46	90
4005-1012	1 1/4	12	9.06	32	1 3/8	51	100
4005-1013	1 3/8	13.5	11.64	36	1 1/2	57	111
4005-1014	1 1/2	17	15.96	38	1 5/8	60	122
