EYE GRAB HOOKS

Release: 2016-04-25 00:11:51  Views: 0

Model：4002

WL (LBS)
MODEL	SIZE(IN)	Carbon	Alloy	WT(LBS)
4002-600	6(1/4)	2600	3500	0.28
4002-800	8(5/16)	3900	4700	0.45
4002-1000	10(3/8)	5400	7100	0.79
4002-1200	12(1/2)	9200	12000	1.75
4002-1600	16(5/8)	13000	15800	3.25
4002-2000	20(3/4)	20200	24700	5.94

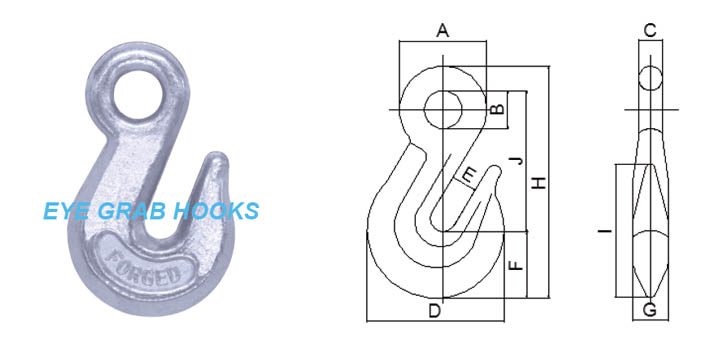

DIMENSIONS (IN)
MODEL	A	B	C	D	E	F	G	H	I	J
4002-600	1.09	0.53	0.31	1.81	0.34	0.88	0.47	3.05	1.75	1.88
4002-800	1.31	0.62	0.38	2.12	0.44	0.97	0.59	3.59	2.06	2.28
4002-1000	1.56	0.75	0.44	2.53	0.5	1.17	0.72	4.28	2.34	2.69
4002-1200	1.94	0.88	0.53	3.56	0.66	1.53	0.78	5.44	2.97	3.38
4002-1600	2.38	1.06	0.66	4.41	0.78	1.89	1	6.66	3.78	4.11
4002-2000	2.88	1.38	0.75	5.22	0.94	2.13	1.31	8.06	5.09	5.16
